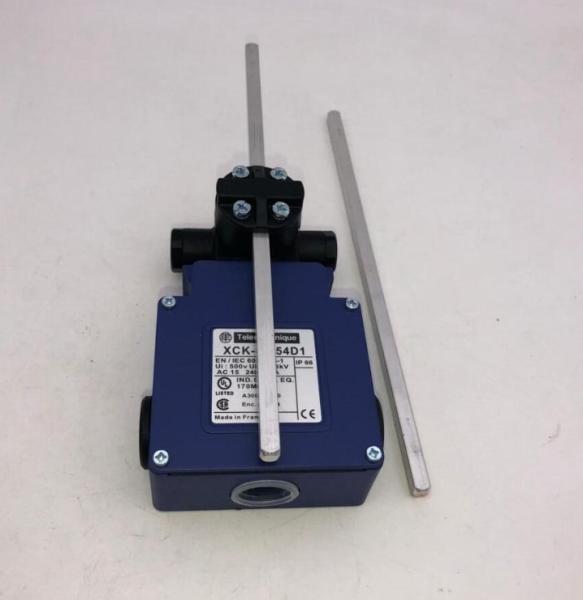

This Square D XCKMR54D1 OsiSense XC Special limit switch has double
or single-speed travel limit control and is suitable for making and
breaking an electrical connection in medium- to heavy-duty hoisting
applications. It is positive opening, with (2 x) two normally
closed (NC) slow-break, staggered contacts. It has a two-way
horizontal approach and a metal stay-put crossed rods lever. It has
a modular design for easier maintenance, a heavy-duty metal casing,
and three tapped entries for a Pg 13.5 cable entry. It has an
operating temperature range from -25 to +70 degrees C and meets the
Ingress Protection (IP) 66 standard for protection against dust and
spraying liquids. This limit switch is Underwriters Laboratories
(UL) listed, Canadian Standards Association (CSA) certified, China
Compulsory Certificate (CCC) marked, meets International
Electromechanical Commission (IEC) and European (EN) standards, and
it conforms to the Restriction of Hazardous Substances (RoHS)
directive. Square D switches and components are manufactured by
Schneider Electric. Square D brand pressure, float, and limit
switches have been synonymous with safety, quality, and reliable
performance for over 100 years. First launched by Detroit Fuse and
Manufacturing in 1902, the Square D brand and its products continue
to earn customer trust today.
Descriptions of Telemecanique XCKMR54D1 provided by its
distributors.
Switch Limit N.C. 4PST Crossed Rods Lever Screw Clamp 3A 240VAC
125VDC Rotary Screw Mount
limit switch XCKMR - stay put crossed rods lever 6mm - 2x(2 NC) -
slow - Pg13
SENSORS LIMIT SWITCH, IP66, DP, METAL HOUSING, 240V AC MAX, 3A MAX
Limit Switch, Rod Lever, Rotary, 2x(2NC), 10A @ 240V AC
LIMIT SWITCH 240VAC 10AMP XCK Stay PutCrossed Rods Lever 2
Direction | Telemecanique Sensors XCKMR54D1
Limit Switch, 4Pst-Nc, 3A, 240Vac; Limit Switch Actuator:Rod Lever;
Contact Configuration:4Pst-Nc; Contact Current Ac Max:3A; Contact
Voltage Ac Max:240V; Operating Force Max:0.5N-M; Product
Range:Osisense Xc Series Rohs Compliant: Yes |Telemecanique Sensors
XCKMR54D1
Square D (Schneider Electric) XCKMR54D1 Limit Switch. Telemecanique
OsiSense Limit Switch, Fixed Rotary Head Slow-Break, Series: XCKMR,
240/300/500 VAC, 10 A, 4NC Contact Configuration, 3 A at 240 VAC
Contact, 4 Pole, Crossed Rod Lever/Metal Stay Put/Rotary Head
Actuator, Screw Clamp Connection, IP66 Enclosure, 7.87 in W x 2.32
in D x 4.65 in H Size, 2000000 Cycles Operating Cycles, -25 to 70
deg C Operating, Metal, Environmental Conditions: -40 to 70 deg C
Storage Temperature. Additional Description: SQD -XCKMR54D1 LIMIT
SWITCH 240VAC 10AMP XCK +OPTIONS. Catalog Description: Limit
switch, Limit switches XC Standard, XCKMR, stay put crossed rods
lever 6 mm, 2x(2 NC), slow, Pg13.
