Micro pressure manometer differential air pressure gauge Measuring
range 0-30PA factory price
product description
MC2000 differential pressure meter uses an extremely thin aluminum
hollow seamless tube to effectively reduce the response time of the
pressure indicator without hysteresis The MC2000 differential
pressure meter uses an extremely thin aluminum hollow seamless tube
to effectively reduce the response time of the pressure indicator
without hysteresi. High strength plastic PC cover, visual
transparent Angle is clear, Excellent strength, safety protection.
The shell adopts all aluminum investment casting, high temperature
metal drawing process, Internal magnetic transmission structure,
eliminate the contact friction generated by the traditional gear
mechanism, Effectively improve product shock resistance and service
life. The product workmanship is fine, the gap is small, the
product is more durable, the quality is guaranteed.
2000 series differential pressure gauge minimum range 0-30Pa,
maximum range 0-30KPa. There are as many as 88 kinds of range and
metric / imperial units to choose from. This differential pressure
gauge using frictionless magnetic components, can rapidly measure
the micro-pressure air or non-corrosive gases, including positive,
negative (vacuum) or differential. No wear, hysteresis and
clearance. Not filling, vaporization and freezing. This design has
anti-vibration, anti-shake and high overpressure capability, you
can guarantee access to high precision. The design impact, shock
and overload protection.
| Product model | Model 2000 micro differential pressure meter |
| measured medium | Air or compatible non-corrosive gases |
| accuracy | ±2.5%FS |
| environment temperature | -7~60℃ |
| rated pressure | -68~100Kpa |
| process connection | 1/8' |
| shell material | Die cast aluminum or ABS plastic containing nylon |
| weight | 500g |
| standard equipment | 2 1/8 "NPT, head, 2 1/8" thread rubber hose connector and three
embedded with screw mounting screw |
Parameters and Dimensions
product standard
instructions

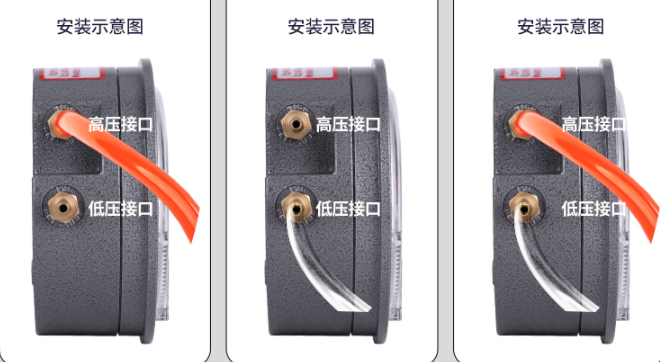

● Positive pressure measurement
With a hose with one of two high pressure hole pressure source
connection and sealing of high pressure hole not connected, make
one or two ventilation low pressure ventilation holes.
● Measuring the negative pressure
Low voltage source with the pipe connection with one of two low
pressure hole and block not connected low-voltage hole, make one or
two ventilation pressure ventilation holes.
● differential manometer
Hose the two higher high pressure sources to the two lower low
pressure sources. And seal the unconnected outlet hole.
matters need attention
Pressure measurement: connect any two high pressure ports on the
airway pressure source without blocking one or both low pressure
ports through the atmosphere.
Measuring the differential
The high pressure source is connected with any one of the two high
pressure mouth with the air pipe, and the low pressure pipe is
connected with any one of the two low pressure mouth, and the
pressure mouth is not used on the table.
Measuring the negative pressure
In the airway pressure source connected to an arbitrary two low
pressure mouth, will not "plug to make one or two high pressure
mouth through the atmosphere.
