XL5 series PLC

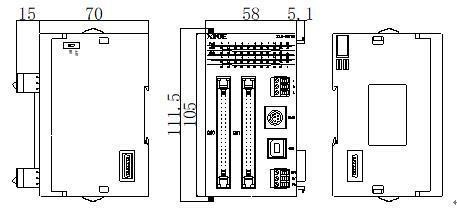

Product description
Slim PLC, compact and practical, saving installation space
Support 2 ~ 4 channels of high-speed pulse output and 3 ~ 4 channels of AB phase high-speed counting
8 / 16 / 32 points input and 8 / 16 / 32 points output; Transistor output, DC24V power supply
Up to 16 expansion modules and 1 ED module can be expanded externally
Support USB port high-speed download
It has higher processing speed, about 12 times that of XC series
With clock and data power down holding function
Support basic logic control and data operation
Support X-NET fieldbus, PID, external interrupt, C function block, MODBUS communication and other functions
| Model list | Model | Input points (DC24V) | Output points (R, T) | | AC power supply | DC power supply | | | Relay output | Transistor output | Relay and transistor mixed output | Relay output | Transistor output | Relay and transistor mixed output | | NPN | - | - | - | - | XL5-16T | - | 8 | 8 | | - | - | - | - | XL5-32T | - | 16 | 16 | | - | - | - | - | XL5-32T4 | - | 16 | 16 | | - | - | - | - | XL5-64T10 | - | 32 | 32 | | PNP | - | - | - | - | XL5-32PT4 | - | 16 | 16 | Note: PNP PLC can be customized. Function configuration table × Not support √ support | Models | USB port | RS232 | RS485 | Ethernet port | Expansion module | Expansion BD board | Left expansion ED module | High speed counting channel | Pulse output channel (T/RT) | External interrupt | | Incremental | AB phase | | XL5-16T | 1 | 1 | √ | × | 16 | × | 1 | 3 | 3 | 2 | 6 | | XL5-32T | 1 | 1 | √ | × | 16 | × | 1 | 3 | 3 | 2 | 10 | | XL5-32T4 | 1 | 1 | √ | × | 16 | × | 1 | 4 | 4 | 4 | 10 | | XL5-64T10 | 1 | 1 | √ | × | 16 | × | 1 | 10 | 10 | 10 | 10 | | | | | | | | | | | | | | |
Note: all models are equipped with clock function as standard.
General Specifications
| Item | Specification |
| Insulation voltage | Above DC 500V 2MΩ |
| Anti noise | Noise voltage 1000Vp-p 1us pulse 1 minute |
| Air | No corrosive and combustible gas |
| Ambient temperature | 0℃~55℃ |
| Ambient humidity | 5%~95% (no condensation) |
| USB port | USB port, XNET protocol, for upload/download porgram and monitoring |
| COM1 | RS232, connect upper computer, HMI to programming and debug |
| COM2 | RS485, connect intelligent instruments, frequency converters, etc |
| COM3 | For left expansion ED module |
| Installation | It can be fixed with M3 screws or directly installed on the guide rail |
| Ground (FG) | The third kind of grounding (not common grounding with strong current system) |
Functional Specifications
| Item | Specification |
| Program execution mode | Loop scan mode |
| Programming mode | Command and ladder chart |
| Processing speed | 0.05us |
| Power-off retentive | FlashROM and 3V lithium battery |
| User program capacity ※1 | 512kB |
| I/O points ※2 | Total points | 16 points | 32 points | 64 points |
| Input points | 8 points X0~X7 | 16 points X0~X17 | 32 points X0~X37 |
| Output points | 8 points Y0~Y7 | 16 points Y0~Y17 | 32 points Y0~Y37 |
| Internal coils (X)※3 | 1280 points: X0~X77, X10000~X11777, X20000~X20177, X30000~X30077 |
| Internal coils (Y) ※4 | 1280 points: Y0~Y77, Y10000~Y11777, Y20000~Y20177, Y30000~Y30077 |
| Internal coils (M, HM) | 87000 points | M0~M69999【HM0~HM11999】※5 |
| Special use ※6 SM0~SM4999 |
| Flow (S) | 9000 points | S0~S7999【HS0~HS999】 |
| Timer (T) | Points | 7000 points | T0~T4999【HT0~HT1999】 |
| Spec | 100ms timer: 0.1~3276.7s 10ms timer: 0.01~327.67s 1ms timer: 0.001~32.767s |
| Counter (C) | Points | 7000 points | C0~C4999【HC0~HC1999】 |
| Spec | 16-bit counter: K0~32,767 32-bit counter: -2147483648~＋2147483647 |
| Data register (D) | 100000 words | D0~D69999【HD0~HD24999】※5 |
| Special use ※6 SD0~SD4999 |
| FlashROM register (FD) | 14192 words | FD0~FD8191 |
| Special use ※6 SFD0~SFD5999 |
| High speed processing ability | High speed counter, pulse output, external interruption |
| Password protection | 6-bit ASCII |
| Self-diagnose function | Power on self-check, monitor timer, grammar check |
Notes:
※ 1: User program capacity refers to the maximum program capacity during secret download.
※ 2: I / O points refer to the number of terminals that users can access and output signals from the outside.
※ 3: X refers to the internal input relay, and X exceeding I points can be used as intermediate relay.
※ 4: y refers to the internal output relay. Y exceeding O points can be used as an intermediate relay.
※ 5: [ ] flag, which is the default power-off holding area and cannot be changed.
※ 6: Special use refers to the special purpose register occupied by the system, which can not be used for other purposes.
※ 7: The numbers of input coils and output relays / transistors are octal numbers, and the numbers of other memories are decimal numbers.
※ 8: I / O without real connection with peripheral equipment can be used as fast internal relay.
