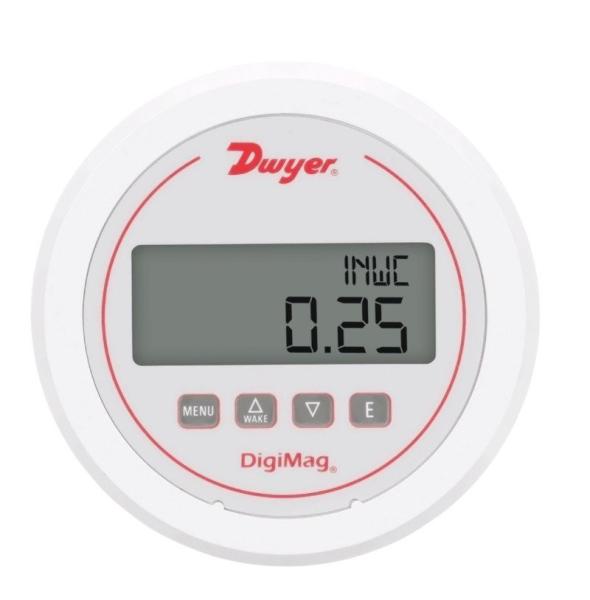

Dwyer DM-1000 Series Digital Differential Pressure Gauge
American DWYER DigiMag® series DM-1000 digital differential
pressure flow meter monitors the differential pressure flow of air
and non-combustible compatible gases. The function is the same as
the Magnehelic® differential pressure gauge. All models are
factory-set. Range. 4-digit LCD can display inch and Metric
reading. 4 buttons simplify calibration and setting operations.
The DigiMag® Series DM-1000 Digital Differential Pressure Flow
Meter is a multi-function differential pressure gauge that can be
field-programmed to operate on pressure, air velocity or flow
according to the order model. DigiMag® Series Digital Differential
Pressure Gauges can be set to display when used in filters The
value flashes, prompting maintenance personnel to perform filter
cleaning maintenance when the filter is clogged. DM-1000 Depending
on the model, use 4 buttons to set security level, engineering
units, K factor (for pitot tubes and flow sensors), filter settings
Set, read peak and valley process data, smooth process data,
display update, zero-to-full calibration, etc.
Medium: Air and non-flammable compatible gases.
Contact material: Consult factory.
Shell material: fiberglass.
Accuracy: ±1% F.S. including linearity, hysteresis and
repeatability; ±2% F.S. for ranges up to 1" w.c..
Temperature Limits: 0 to 140°F (-18 to 60°C).
Temperature Compensation Limits: 32 to 122°F (0 to 50°C).
Long-term stability: ±1% F.S. per year.
Thermal Effects: ±0.05% F.S./°F typ.; ±0.10% F.S./°F typ. for
ranges 1" w.c. and below.
Display: 4-digit LCD (dimensions: 0.60"H x 0.33"W).
Display update: 1 second~10 minutes, or select button update.
Pressure Limits: 2 psi (13.7 kPa) for ranges up to 5" w.c.; 11 psi
(75 kPa) for ranges up to 10" w.c.
Selectable Engineering Units: in w.c., psi, kPa, Pa, mm w.c., mBar,
in Hg, mm Hg, FS (0-100% FS).
Power: 9V battery or external 9-24 VDC power supply. Factory
included but not connected.
Battery Type: 9V Alkaline (Duracell® PC 1604 or equivalent).
Battery life: Depends on display update time: 150 hours (typical)
at 1 second display update digit; September (typical) at 10 minutes
display update; 1.5 years (typical) when display does not update.
If using ULTRALIFE U9VL-J lithium battery, display The time is 4
times as long as above.
Current consumption: 5 mA maximum.
Electrical Connection: Pluggable Terminals 16 to 26 AWG.
Electrical Entry: Cable gland for 0.114 to 0.250" (2.9 to 6.4 mm)
diameter cable.
Process Connection: 1/8" (3 mm) I.D. tubing.
Encapsulation: NEMA 4X (IP66).
Weight: 1.18 lb (535 g).
Dimensions: 5" (127 mm) front OD.
 |
| Model | Description |
|---|
| DM-1102 | DigiMag® differential digital pressure gage, range 0-0.25" w.c. |
| DM-1103 | DigiMag® differential digital pressure gage, range 0-0.5" w.c. |
| DM-1104 | DigiMag® differential digital pressure gage, range 0-1" w.c. |
| DM-1105 | DigiMag® differential digital pressure gage, range 0-2" w.c. |
| DM-1107 | DigiMag® differential digital pressure gage, range 0-5" w.c. |
| DM-1108 | DigiMag® differential digital pressure gage, range 0-10" w.c. |
| DM-1109 | DigiMag® differential digital pressure gage, range 0-15" w.c. |
| DM-1110 | DigiMag® differential digital pressure gage, range 0-25" w.c. |
| DM-1111 | DigiMag® differential digital pressure gage, range 0-50" w.c. |
| DM-1112 | DigiMag® differential digital pressure gage, range 0-100" w.c. |
| DM-1122 | DigiMag® differential digital pressure gage, range 0.25-0-0.25"
w.c. |
| DM-1123 | DigiMag® differential digital pressure gage, range 0.5-0-0.5" w.c. |
| DM-1124 | DigiMag® differential digital pressure gage, range 1-0-1" w.c. |
| DM-1125 | DigiMag® differential digital pressure gage, range 2-0-2" w.c. |
| DM-1127 | DigiMag® differential digital pressure gage, range 5-0-5" w.c. |
| DM-1128 | DigiMag® differential digital pressure gage, range 10-0-10" w.c. |
| DM-1202 | DigiMag® differential digital flow gage, range 0-0.25" w.c. |
| DM-1203 | DigiMag® differential digital flow gage, range 0-0.5" w.c. |
| DM-1204 | DigiMag® differential digital flow gage, range 0-1" w.c. |
| DM-1205 | DigiMag® differential digital flow gage, range 0-2" w.c. |
| DM-1207 | DigiMag® differential digital flow gage, range 0-5" w.c. |
| DM-1208 | DigiMag® differential digital flow gage, range 0-10" w.c. |
| DM-1209 | DigiMag® differential digital flow gage, range 0-15" w.c. |
| DM-1210 | DigiMag® differential digital flow gage, range 0-25" w.c. |
| DM-1211 | DigiMag® differential digital flow gage, range 0-50" w.c. |
