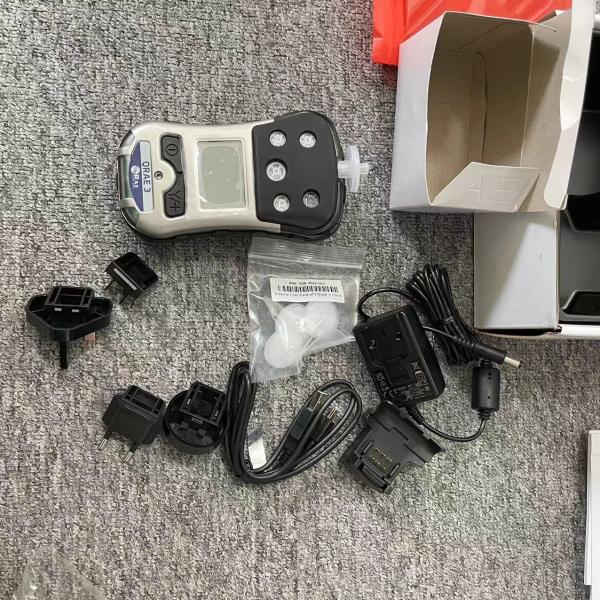

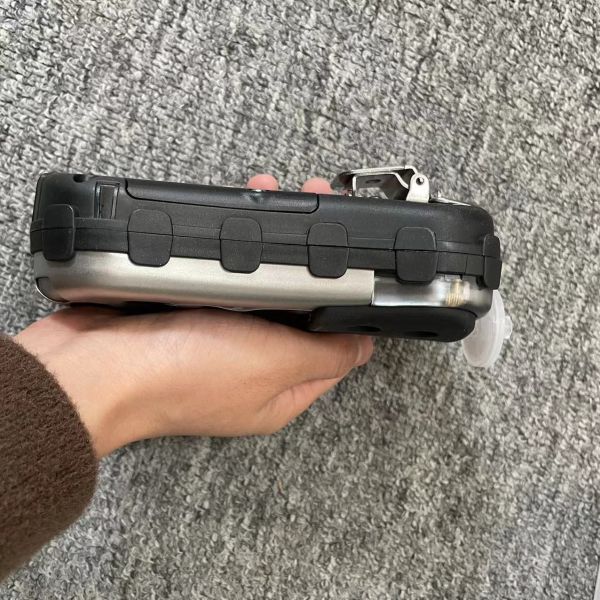

QRAE 3 is a wireless compact monitor for one to four gases. The
QRAE 3 provides detection and monitoring of Oxygen (O2),
Combustibles, and toxic gases that include Hydrogen Sulfide (H2S),
Carbon Monoxide (CO), Sulfur Dioxide (SO2) and Hydrogen Cyanide
(HCN). QRAE 3 can deliver wireless real-time instrument readings
and alarm status 24/7. This provides better incident visibility and
can improve response time. • Man Down Alarm with real-time remote
wireless notification1 • Easy maintenance with fieldreplaceable
sensors and pump • Fully automated bump testing and calibration
with AutoRAE 2 • Pumped or diffusion models available • Large
graphic display can rotate 180º Applications Confined space entry
and general safety and compliance in: • Industrial safety • Oil and
gas • Fireground “Toxic Twins” detection • Environmental • Fire and
Emergency response QRAE 3 Wireless 4-Gas Monitor • Available in
Diffusion or Pumped version • IP-65/67 water- and dust-resistant
case • Strong, protective, concussion-proof design • Real-time gas
concentration readings and alarm status enabled by state-ofthe-art
wireless technology • Unmistakable five-way local and remote
wireless notification of alarm conditions • Large graphical display
icon-driven user interface through intuitive, simple-tooperate
two-button user interface. • Multi-language support: 18 languages
encoded • Easy access to pump, sensors, filter and battery
compartment • Device Management with Honeywell SafetySuite FEATURES
& BENEFITS Optional Accessories • AutoRAE 2 Automatic Test and
Calibration System • External battery charger QRAE 3 Specifications
INSTRUMENT SPECIFICATIONS SIZE Diffusion: 5.5 "H x 3.2 "W x 1.5" W
(140 mm x 82mm x 42mm) Pumped: 5.7 "H x 3.2 "W x 1.7" D (145 mm x
82 mm x 42mm) WEIGHT Diffusion: 12.9 oz (365 g with Li-ion battery
and clip) Pumped: 14.5 oz (410 g with Li-ion battery, clip, and
external filter) SENSORS Up to four field-replaceable sensors: •
LEL: Catalytic bead for combustibles (built-in Correction Factor
library) • Oxygen: Liquid electrolyte O2 • Toxic: electrochemical
for H2 S, CO, SO2 , HCN BATTERY Rechargeable Li-ion RUNNING TIME •
14 hours continuous non-wireless, diffusion • 11 hours continuous
non- wireless, pumped • 10 hours continuous with wireless,
diffusion • 8 hours continuous with wireless, pumped Note: All
battery specifications at 68° F (20° C); lower temperatures and
alarm conditions will affect runtime. DISPLAY GRAPHIC Monochrome
graphic display (128 x 80) Display size: 1.57" W x 1.06" H (40 x 27
mm) with backlighting Automatic or on-demand screen rotation KEYPAD
Two-button operation DIRECT READOUT • Real-time reading of gas
concentrations • Battery status • Pump status (if equipped with
pump) • Wireless on/off and wireless reception quality • STEL, TWA,
peak, and minimum values • Man Down and policy enforcement
indicators DATALOGGING • Multi-tone 95dB buzzer (at 11.8"/ 30 cm,
typical), vibration alarm, and flashing red LEDs and on-screen
indication of alarm conditions • Alarms: latching, non latching or
manual override • Additional diagnostic alarm and display message
for low battery • Pump stall alarm (pumped version only) • Man Down
Alarm with pre-alarm and real-time remote wireless notification
DATALOGGING • Continuous datalogging (3 months for 4 sensors at
1-minute intervals, 24/7) • User-configurable datalogging intervals
(from 1 to 3,600 seconds) COMMUNICATION AND DATA DOWNLOAD • Data
download and instrument set-up and upgrades on PC via Travel
Charger • Wireless data and status transmission via built-in RF
modem (optional) WIRELESS NETWORK Mesh RAE Systems Dedicated
Wireless Network WIRELESS FREQUENCY AND APPROVALS4 ISM license free
band, 868Mhz or 900Mhz FCC Part15, CE R&TTE, ANATEL WIRELESS
RANGE (TYPICAL) EchoView Host: LOS > 650 ft (200 m)3 ProRAE
Guardian and RAEMesh Reader: LOS > 650 ft (200 m)3 ProRAE
Guardian and RAELink3 Mesh: LOS > 330 ft (100 m)3 EM IMMUNITY
EMI and ESD test: 100MHz to 1GHz 30V/m, no alarm Contact: ±4kV Air:
±8kV, no alarm IP RATING Pumped: IP-65 Diffusion: IP-67 CALIBRATION
Two-point calibration for zero and span (manual, or automatic with
AutoRAE 2) ORDERING INFORMATION • Wireless1 and non-wireless
options available for all configurations • Diffusion and pumped
versions available for all configuration • Refer to the Portables
Pricing guide for monitor configuration and accessories INSTRUMENT
SPECIFICATIONS SAMPLING PUMP Built-in pump or diffusion Can sample
through tubing up to 98ft (30m) HAZARDOUS AREA APPROVAL US and
Canada: classified for use in Class I, Division 1, Groups A, B, C
and D Europe: IECEx/ATEX (II 1G Ex ia IIC T4) TEMPERATURE -4° to
122° F (-20° to 50° C) for T4 temperature code HUMIDITY 0% to 95%
relative humidity (non-condensing) ATTACHMENTS Stainless-steel
alligator clip Swivel belt clip (optional) Pouch (optional)
LANGUAGES Arabic, Chinese, Czech, Dutch, English, French, German,
Indonesian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, and Swedish (language must be changed
through ProRAE Studio II) WARRANTY 2-year warranty on device2
3-year warranty on LEL, O2 , CO, H2 S sensors2 1-year warranty on
SO2 , HCN sensors2 Specifications are subject to change. DEFAULT
SENSOR SPECI CATIONS GAS MONITOR Range Resolution OXYGEN (O2 ) 0 to
30.0% 0.1% COMBUSTIBLE 0 to 100% LEL 1% LEL CARBON MONOXIDE (CO) 0
to 500 ppm 1 ppm HYDROGEN SULFIDE (H2 S) 0 to 100 ppm 0.1 ppm
SULFUR DIOXIDE (SO2 ) 0 to 20 ppm 0.1 ppm HYDROGEN CYANIDE (HCN) 0
to 50 ppm 0.2 ppm AMMONIA (NH3 ) 100 ppm 1 ppm PHOSPHINE (PH3 ) 20
ppm 0.01 ppm CHLORINE (CL2 ) 0 to 50 ppm 0.05 ppm NITROGEN DIOXIDE
(NO2 ) 0 to 50 ppm 0.1 ppm 1 Additional equipment and/or software
licenses may be required to enable remote wireless monitoring and
alarm transmission 2 Against factory defects 3 Receiving >80%
