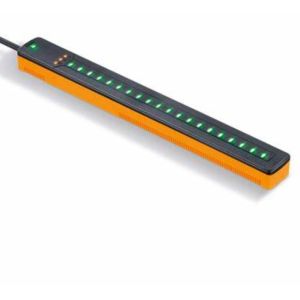

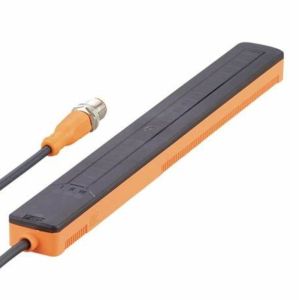

IFM Continuous Level Sensor KQ1001 KQ-5xxxNFPKG/IO/0,1M/US IO-Link

Product characteristics

Electrical design	PNP/NPN; (configurable)
Communication interface	IO-Link
Dimensions [mm]	250 x 28 x 16.7

Application

Application	Continuous level measurement behind non-metallic and non-conductive surfaces
Media	dry bulk material; aqueous solutions; oils
Cannot be used for	very adhesive media

Electrical data

Operating voltage [V]	10...30 DC; (IO-Link: 18...30 DC)
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	1300
Measuring principle	capacitive

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 3

Outputs

Electrical design	PNP/NPN; (configurable)
Number of digital outputs	3
Permanent current rating of switching output DC [mA]	200
Max. resistance switching output [Ω]	8
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Measuring range [mm]	< 200

Measuring/setting range

Detection range [mm]	228
Set point SP [%]	5...95
Reset point rP [%]	4...94
In steps of [%]	1

Accuracy / deviations

Repeatability [% of the final value]	2
Offset deviation [% of the final value]	4
Resolution [% of the final value]	1
Linearity deviation [% of the final value]	1

Reaction times

Response time [ms]	1300

Software / programming

Parameter setting options	Damping; hysteresis / window; fault indication; Diagnostic function; Sensitivity; internal temperature; limitation of measuring range; adjustable switching delay; zero-point calibration; direction of installation; LEDs can be deactivated

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Digital Measuring Sensor Profile, Common Profile

SIO mode

yes

Required master port class

Process data analog

Process data binary

Min. process cycle time [ms]

9.6

IO-Link process data (cyclical)

Function	bit length
process value	16
exponent	8
device status	4
binary switching information	3

IO-Link functions (acyclical)

direction of installation; limitation of sensor elements; Sensitivity; minimum recognition threshold; Performance in case of a fault; error delay; Damping; LED mode; switch-on cycle counter; operating hours counter; switching cycles counter; min./max. process value; internal temperature; min./max. internal temperature; diagnostic data level

Supported DeviceIDs

Type of operation	DeviceID
default	924

Note

For further information please see the IODD PDF file at "Downloads"

Operating conditions

Applications	DIN EN 60654-1 application class B2
Ambient temperature [°C]	-20...80
Storage temperature [°C]	-25...85
Protection	IP 65

Tests / approvals

EMC

DIN EN 61000-6-4 30 - 230 MHz	40 dBµV/m QP / 10 m distance
230 - 1 GHz	47 dBµV/m QP / 10 m distance
DIN EN 61000-4-2	± 25 kV AD / ± 25 kV CD
DIN EN 61000-4-3	80 MHz - / 1 GHz 10 V/m
DIN EN 61000-4-4	± 2.5 kV / 5 kHz
	± 2.5 kV / 100 kHz
DIN EN 61000-4-6	10 V

Shock resistance

EN 60068-2-27

15 g 11 ms

Vibration resistance

EN 60068-2-6

5 g (10...2000 Hz)

MTTF [years]

290.43

UL approval

Ta	-25...60 °C
Enclosure type	Type 1
voltage supply	Limited Voltage/Current
UL approval number	D006
File number UL	E174191

Mechanical data

Weight [g]	377.5
Dimensions [mm]	250 x 28 x 16.7
Material	PBT; PC;

Displays / operating elements

Display

Power	1 x LED, green
Switching status	3 x LED, yellow
Function	20 x LED, green

Accessories

Items supplied

adhesive tape: 1 x 23 mm x 240 mm

Accessories (optional)

Mounting adapter: 2, E12675

Mounting adapter: 2, E12676

Fixing strap: 5, E10880

adhesive tape: 10, E12677

Remarks

When used on IO-Link class B masters, switching outputs OUT2, OUT3 must be turned off

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Electrical connection - plug

	Cable: 0.1 m, PUR
