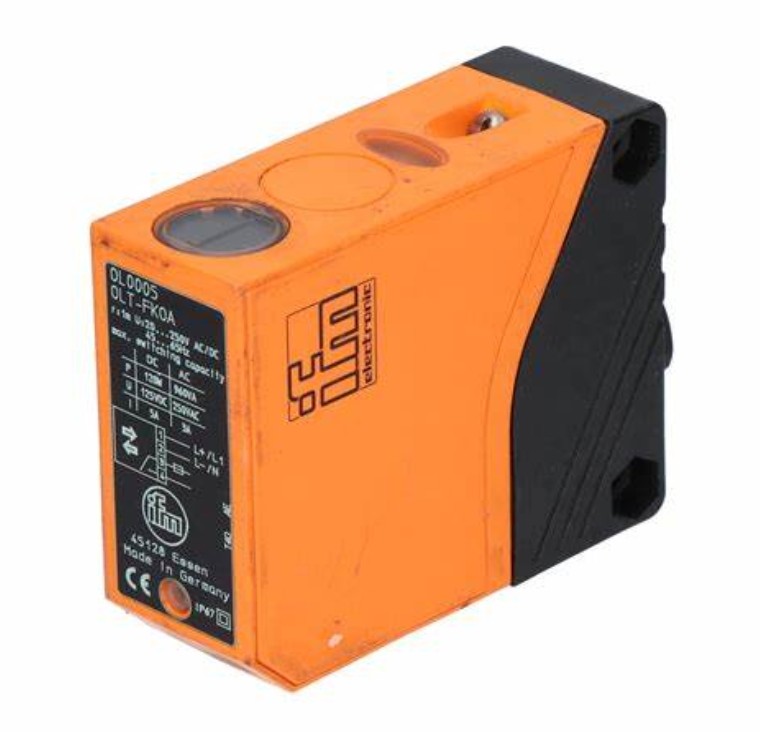

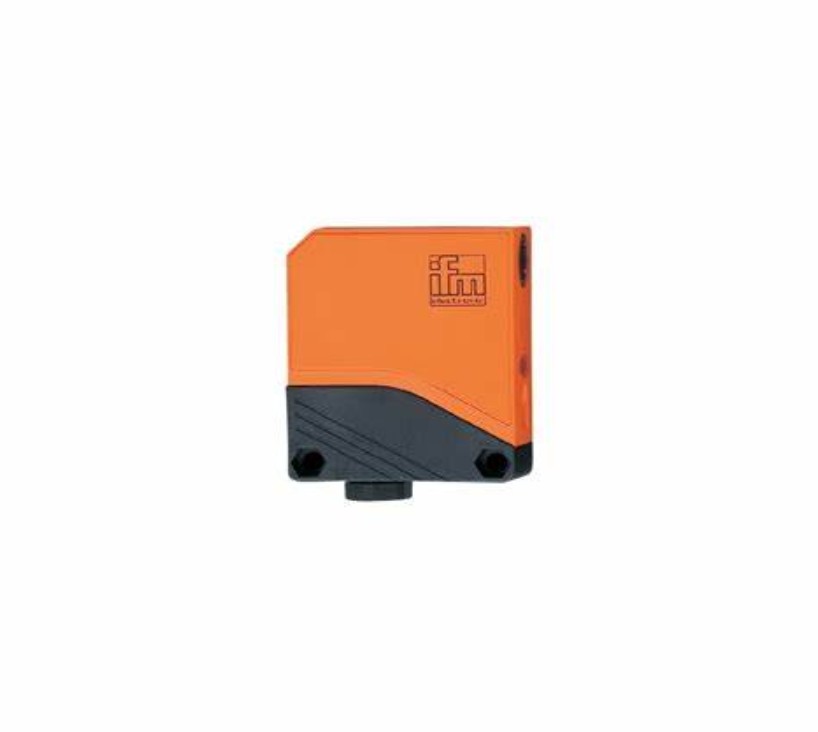

    IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO

    Ask Lasest Price
    Brand Name : IFM
    Model Number : OL0005
    Certification : CE
    Price : USD$140
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500pc
    Delivery Time : 6-8weeks
    • Product Details
    • Company Profile

    IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO

    Product characteristics
    Type of lightInfrared light
    Housingrectangular
    Application
    Function principleDiffuse reflection sensor
    Electrical data
    Frequency AC [Hz]47...63
    Operating voltage [V]20...250 AC/DC
    Max. power consumption [VA]4
    Protection classII
    Reverse polarity protectionno
    Type of lightInfrared light
    Wave length [nm]880
    Outputs
    Electrical designRelay
    Output functionlight-on/dark-on mode; (programmable)
    Contact rating250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W
    Switching frequency AC [Hz]10
    Switching frequency DC [Hz]10
    Short-circuit proofno
    Overload protectionno
    Monitoring range
    Range [mm]1...1000; (white paper 200 x 200 mm 90 % remission)
    Range adjustableyes
    Max. light spot diameter [mm]300
    Light spot dimensions refer toat maximum range
    Operating conditions
    Ambient temperature [°C]-25...80
    ProtectionIP 67
    Tests / approvals
    EMC
    EN 60947-5-2
    EN 55011class B
    MTTF [years]226
    Mechanical data
    Weight [g]171
    Housingrectangular
    Dimensions [mm]75 x 27 x 62
    MaterialPA; PBT
    Lens material
    PMMA
    Lens alignmentSide sensing
    Displays / operating elements
    Display
    Switching status1 x LED, yellow
    Power1 x LED, green
    Function1 x LED, red
    Electrical connection
    Required protectionminiature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
    Remarks
    Remarks
    Recommendation: check the unit for reliable function after a short circuit.
    Pack quantity1 pcs.
    Electrical connection
    Connectionterminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
