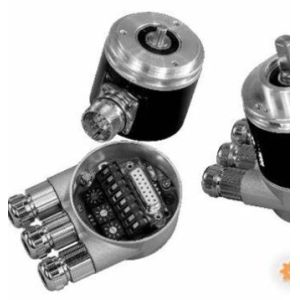

PEPPERL+FUCHS Multiturn Absolute Rotary Encoder AVM58N-011K1R0GN-1213

Ask Lasest Price
Brand Name :	PEPPERL+FUCHS
Model Number :	AVM58N-011K1R0GN-1213
Certification :	CE
Price :	USD$310
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500pcs
Delivery Time :	in stock

Add to Cart

Product Details
Company Profile

PEPPERL+FUCHS Multiturn Absolute Rotary Encoder AVM58N-011K1R0GN-1213

General specifications
Detection type		photoelectric sampling
Device type		Multiturn absolute rotary encoder
UL File Number		E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.
Electrical specifications
Operating voltage		4.5 ... 30 V DC (SSI, SSI + RS422) ; 10 ... 30 V DC (SSI + Push/Pull)
No-load supply current		max. 180 mA
Time delay before availability		< 250 ms
Linearity		± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit
Output code		Gray code, binary code
Code course (counting direction)		cw descending (clockwise rotation, code course descending)
Interface
Interface type		SSI ; SSI + incremental track
Monoflop time		20 ± 10 µs
Resolution
	Single turn	up to 16 Bit
	Multiturn	14 Bit
	Overall resolution	up to 30 Bit
Transfer rate		0.1 ... 2 MBit/s
Voltage drop		U_B - 2.5 V
Standard conformity		RS 422
Input 1
Input type		Selection of counting direction (cw/ccw)
Signal voltage
	High	4.5 ... 30 V
	Low	0 ... 2 V
Input current		< 6 mA
Switch-on delay		< 10 ms
Input 2
Input type		zero-set (PRESET 1)
Signal voltage
	High	4.5 ... 30 V
	Low	0 ... 2 V
Input current		< 6 mA
Signal duration		min. 100 ms
Switch-on delay		< 10 ms
Output
Output type		RS422, Push/Pull
Signal output		A+B+/A+/B
Pulses		1024, 2048, 4096
Connection
Connector		type 9416 (M23), 12-pin, type 9416L (M23), 12-pin
Cable		∅7 mm, 6 x 2 x 0.14 mm², 1 m
Standard conformity
Degree of protection		DIN EN 60529, IP65 (without shaft seal) ; DIN EN 60529, IP66/IP67 (with shaft seal)
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		DIN EN 61000-6-4
Noise immunity		DIN EN 61000-6-2
Shock resistance		DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance		DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.
Ambient conditions
Operating temperature		-40 ... 85 °C (-40 ... 185 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
